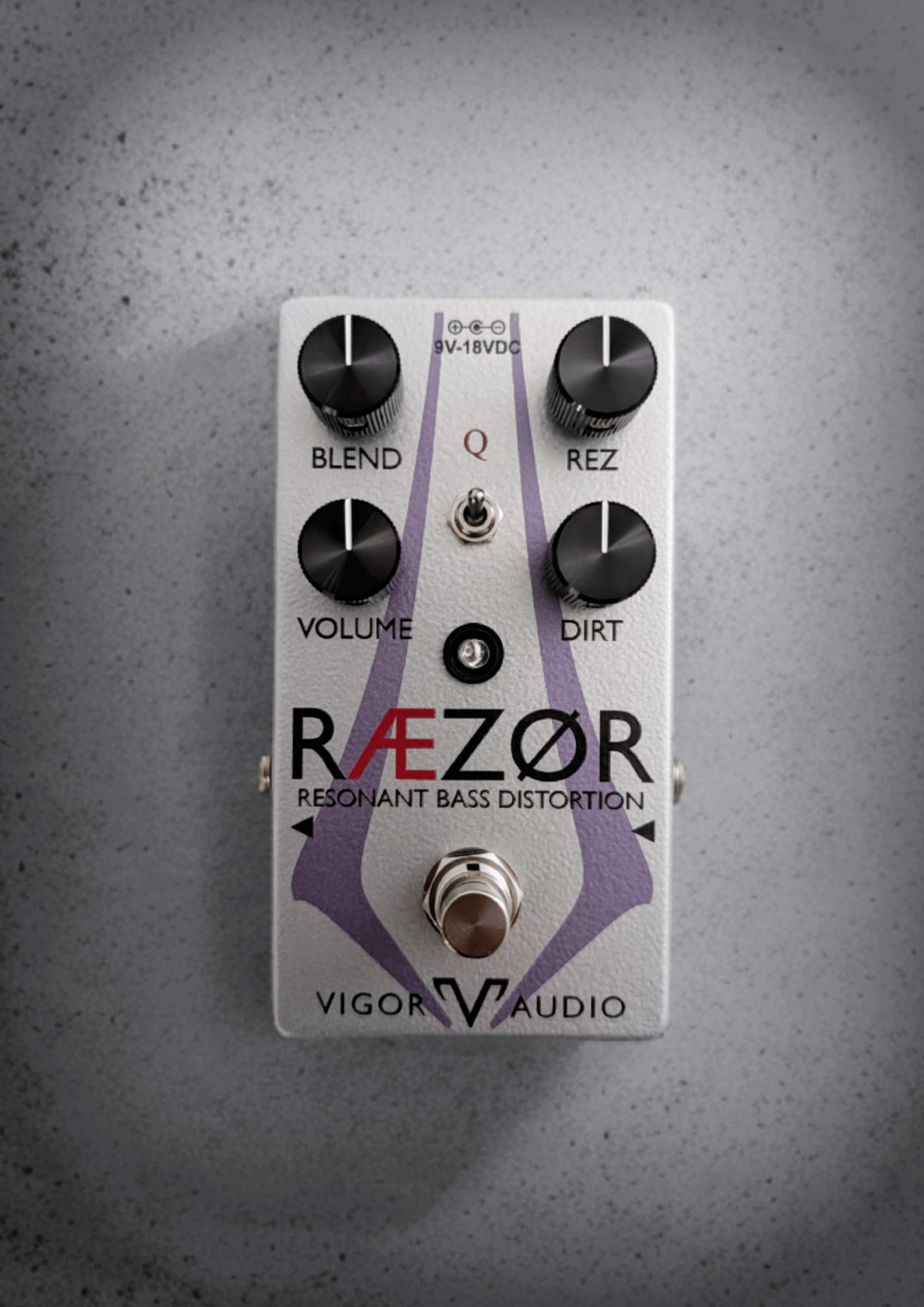

RÆZOR (Rev II), Resonant Bass Distortion Pedal

DEMO VIDEO COMING SOON!

Disclaimer: Upon ordering, please allow up to 7-10 days of build/test time before shipment.

The original RÆZOR (Rev I) has now been updated to Rev II!

Rev II Updates:

Reverse Input Protection - Upon inserting a 9V-18VDC adapter with the reverse polarity, neither the pedal nor the adapter will get damaged.

"DIRT" Knob - The DIRT knob now allows for MORE distortion/gain by nearly 10x!

"Q" Toggle Switch - The debut pedal had a fixed resonant filter peak boost of +10 dB; the Rev II allows the user to adjust the peak between three levels:

+10 dB (up)
+6 dB (center)
+2.5 dB (down)

Aside from these features, the new revision also features a better designed circuit board and sturdier wiring between the main board and the footswitch.

The rest of the knobs work the same as the original revision:

"BLEND" - Mix between the dry input signal and the wet dirty signal.

"REZ" - Sweeps the post-gain resonant filter's frequency between 1700 Hz and 3200 Hz. *Justin's Chancellor tone can be achieved at a filter cut-off of ~2200 Hz which is roughly around 55-60% clock-wise or 1 o'clock*

"VOLUME" - ...well - again, just volume.

9V-18VDC Operation. For basses with hotter pre-amps (or high signal output swings), 18V is preferred.

Input/Output Jacks are side-mounted.

More demos featuring this pedal are coming soon! Please feel free to contact Vigor Audio for more information about the RÆZOR.
